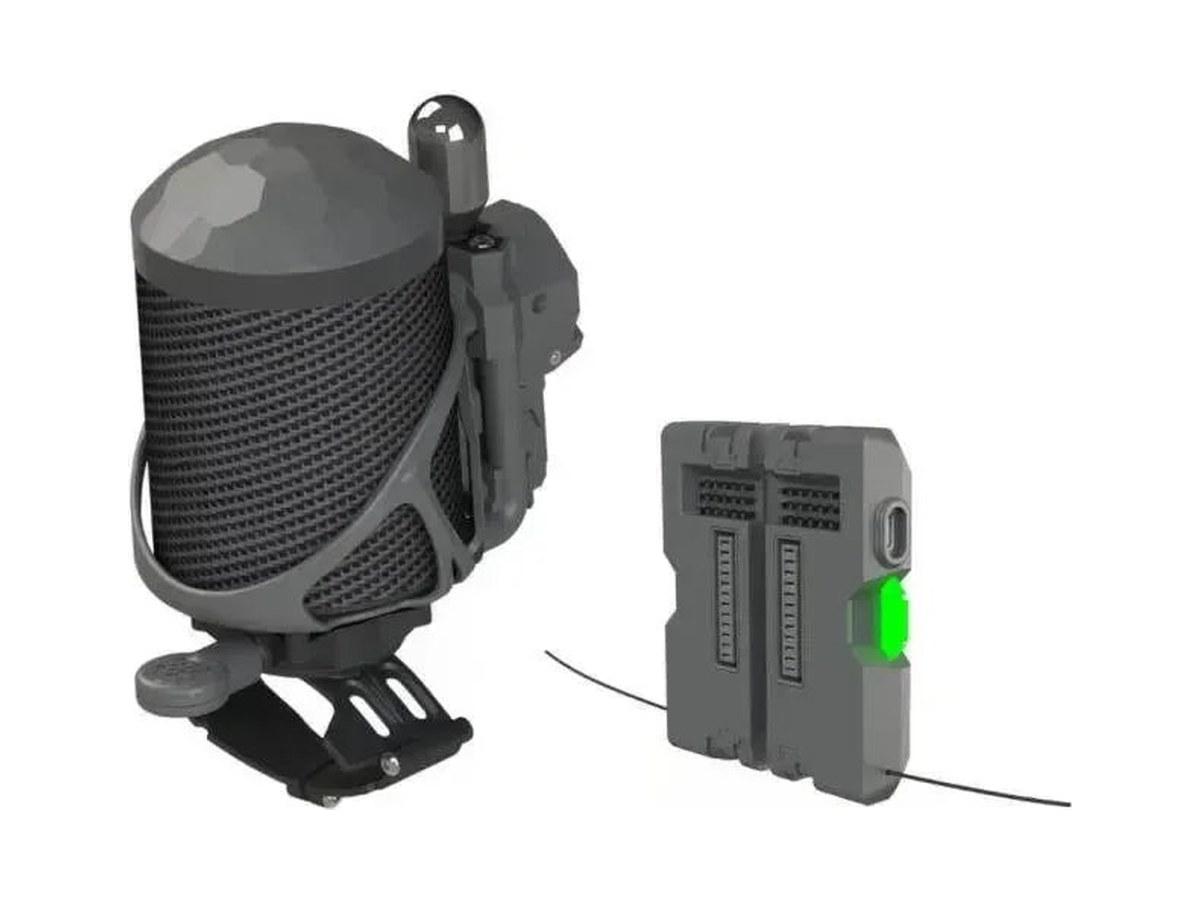

Dronavia Kronos AD
Class C5
Class C5 kit for the Inspire 3: parachute and flight termination with a dedicated remote and automatic deployment on a fall. It takes the drone from class C3 to C5, to operate above controlled areas in urban settings. In a 24-metre fall, impact energy drops from 1177 to under 21 joules (manufacturer's data).
Used with
Specifications
Manufacturer's data, from the user manual of the kit in use (Dronavia Kronos I3, version 1.2) and the declaration of conformity, copied on 28 September 2026. Manufacturer's page ↗
The manufacturer's page describes the current version of the kit, powered by the drone: some values differ.
Technical specifications
9 items
- Total weight
- 376 g (with cartridge)
- Ejection device
- 4 g CO2 cartridge
- Minimum effective height
- From 24 m
- Wireless radio link
- SRD860 with encrypted key (869 MHz / 100 mW)
- Klick remote control range
- 3000 m
- Parachute battery life
- 5 hours
- Klick remote control battery life
- 30 hours
- Ground impact energy
- < 24 JFall from 24 m: less than 21 J with the parachute, 1177 J without
- Operating temperature
- -5 °C to 40 °C
Operational limits
4 items
- Maximum wind speed at ground level
- 9.46 m/s
- Minimum flight altitude (AGL)
- 30 m
- Operating temperatures
- Minimum: -5 °CMaximum: 40 °C
- Usable in rain
- No
Dimensions and weights
3 items

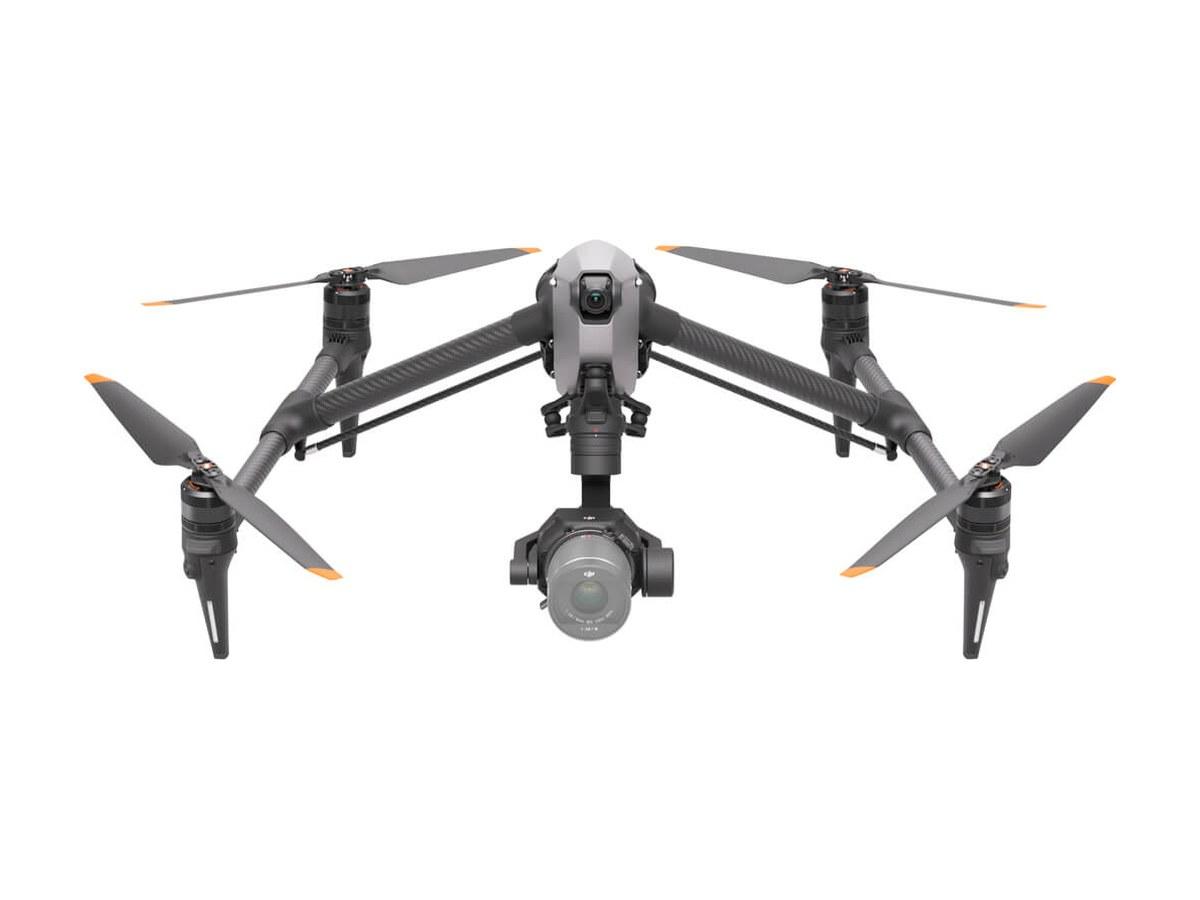

- Drone
- 50 × 71 × 35 cm3995 g
- Parachute
- 8 × 12 × 20 cm376 g
- Parachute + drone
- 50 × 71 × 35 cm4311 g
Minimum buffer zone for ground risk
10 items
- Deployment height 30 m
- 76 m
- Deployment height 40 m
- 104 m
- Deployment height 50 m
- 132 m
- Deployment height 60 m
- 160 m
- Deployment height 70 m
- 188 m
- Deployment height 80 m
- 216 m
- Deployment height 90 m
- 244 m
- Deployment height 100 m
- 272 m
- Deployment height 110 m
- 300 m
- Deployment height 120 m
- 328 m
Kit contents
2 items
- Components
- CO2 cartridge (4 g)POD (canopy ejection)POD supportElectronic module with audible alarmLocking pinParachute mounting bracket (male and female)Klick trigger remote control, with Klick Set and Klick Pin
- Supplied accessories
- USB-C cable2 and 2.5 mm Allen keyReset tool and threaded reset toolMounting bracket cover
Compliance
3 items
- Class
- Class C5 accessory kit for the class C3 multirotor DJI Inspire 3 (Regulation (EU) 2020/1058, part 16, point 8)EU declaration of conformity of 1 February 2024
- Flight termination (FTS)
- Compliant with MOC Light-UAS.2511Manual activation, with the Klick remote control
- Parachute (PRS)
- Compliant with MOC Light-UAS.2512 (M2)Manual activation with the Klick remote control, or automatic on crash detection
